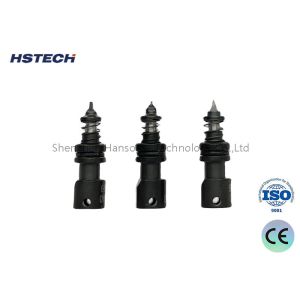

High-Speed Precision SMT Nozzle For Yamaha YSM40R-7202A 7203A 7204A
Pick And Place Machine
Introduce
The YSM40R series is Yamaha's ultra-high-speed modular Z:TA-R SMT
placement machine series. This series of nozzles is a key component
used to pick up and place electronic components to achieve
efficient patch production.
The Yamaha YSM40R is an ultra-high-speed modular Z:TA-R SMT
assembly system. It is known for its revolutionary productivity,
achieving a speed of 200,000 CPH (components per hour)
Features
| High-speed performance | YSM40R nozzle adopts the latest technologies such as
ultra-high-speed turret placement head and high-speed processing
servo motor, achieving the world's highest level of placement
speed, reaching 200,000 CPH |
| Ultra-high-speed turret-type placement head | The YSM40R nozzle adopts an ultra-high-speed turret-type placement
head, which achieves innovation by reducing the weight of the
placement head, adopting newly developed rotor control technology
and unique simultaneous pickup technology. productivity |
| Miniaturized design | Although it is a 4-beam placement machine, the body size of the
YSM40R is only 1m in width x 2.1m in depth. The design is very
compact and can be efficiently utilized when the factory space is
limited |
| flexibly support a variety of production forms | YSM40R nozzle has 2 placement head specifications, which can be
appropriately replaced according to the production form. The
ultra-high-speed placement head (RS placement head) is suitable for
mounting components from 0201mm to 6.5mm and a height of 2mm. The
multi-function placement head (MU placement head) is suitable for
components from 03015mm to 45×60mm and a height of 15mm. Install |
| Flexible corresponding nozzle station | YSM40R nozzle can be replaced with a matching nozzle station (ANC)
according to different placement heads, and when using an
ultra-high-speed placement head, it also supports free
configuration of the nozzle structure |
Application
| SMT patch process | Widely used in the patch process on SMT (surface mount technology)
production lines |
| Picking up and placing electronic components | suitable for picking up and placing various electronic components,
such as chips, resistors, capacitors, etc., to achieve efficient
patch production |
YAMAHA YG12/YS12/YS 24 Series Nozzle
Yamaha YG12/YS12/YS24: KHN-M7710-A1 NOZZLE 301A ASSY
Yamaha YG12/YS12/YS24: KHN-M7710-A2 NOZZLE 301A ASSY
Yamaha YG12/YS12/YS24: KHN-M7711-01 BODY,NOZZLE
Yamaha YG12/YS12/YS24: KHN-M7711-02 BODY,NOZZLE 301
Yamaha YG12/YS12/YS24: KHN-M7711-03 BODY,NOZZLE 301
Yamaha YG12/YS12/YS24: KHN-M7713-00 SPRING
Yamaha YG12/YS12/YS24: KHN-M7713-00 SPRING
Yamaha YG12/YS12/YS24: KHN-M7714-00 PIN
Yamaha YG12/YS12/YS24: KHN-M7715-00 CLIP
Yamaha YG12/YS12/YS24: KHN-M7720-A1 NOZZLE 302A ASSY.
Yamaha YG12/YS12/YS24: KHN-M7721-01 BODY,NOZZLE 2
Yamaha YG12/YS12/YS24: KHN-M7721-02 BODY,NOZZLE 302
Yamaha YG12/YS12/YS24: KHY-M7740-A0 NOZZLE 303A/314A ASSY.
Yamaha YG12/YS12/YS24: KHY-M7741-00 BODY,NOZZLE 303/314
Yamaha YG12/YS12/YS24: KHY-M7750-A0 NOZZLE 304A/315A ASSY.
Yamaha YG12/YS12/YS24: 90990-17J013 O-RING
Yamaha YG12/YS12/YS24: KHY-M7770-A0 NOZZLE 306A/317A ASSY.
Yamaha YG12/YS12/YS24: KHY-M7771-00 BODY,NOZZLE 306/317
Yamaha YG12/YS12/YS24: KHY-M77A0-A0 NOZZLE 310A ASSY.
Yamaha YG12/YS12/YS24: KHY-M77A1-00 BODY,NOZZLE 310A
Yamaha YG12/YS12/YS24: KHY-M7710-A0 NOZZLE 311A ASSY.
Yamaha YG12/YS12/YS24: KHY-M7710-A1 NOZZLE 311A ASSY.
Yamaha YG12/YS12/YS24: KHY-M7710-A2 NOZZLE 311A ASSY.
Yamaha YG12/YS12/YS24: KHY-M7711-00 BODY,NOZZLE 311
Yamaha YG12/YS12/YS24: KHY-M7711-01 BODY,NOZZLE 311
Yamaha YG12/YS12/YS24: KHN-M7713-10 SPRING
Yamaha YG12/YS12/YS24: KHY-M7720-A0 NOZZLE 312A ASSY.
Yamaha YG12/YS12/YS24: KHY-M7720-A1 NOZZLE 312A ASSY.
We sell SMT Nozzles of all brand ,such as YAMAHA, Panasonic,
FUJI,JUKI,SAMSUNG ,etc.
