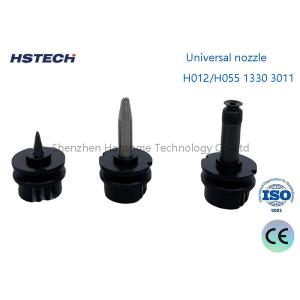

High Quality HSC-H012/H055 1330 3011 SMT Nozzle Of SMT Spare Part
For SMT Chip Mounter Machine
introduce
The SMT nozzle is installed on the patch head and is used to pick
up component patches and mount them on the circuit board. With the
miniaturization and high density of components on circuit boards,
higher requirements are placed on the accuracy of placement
machines, and higher requirements are also placed on the precision
and quality of SMT nozzles.
SMT (Surface Mount Technology) nozzle is an important tool used in
automated placement equipment for electronic components, used to
pick up and place small electronic components. There are many types
of SMT nozzles according to different needs, common ones include:
| Round nozzle | The round nozzle is the most common type, suitable for picking up
and placing round electronic components, such as chip resistors,
capacitors, etc. |
| Rectangular nozzle | The rectangular nozzle is suitable for picking up and placing
rectangular electronic components, such as IC chips, diodes, etc. |
| Needle nozzle | Needle nozzle is suitable for picking up and placing elongated
electronic components, such as inductors, crystal oscillators, etc. |
| V-shaped nozzle | V-shaped nozzle is suitable for picking up and placing
special-shaped electronic components, such as LED lamp beads,
optocouplers, etc |
In addition, there are some special types of nozzles, such as
rotating nozzles, elbow nozzles, etc., which can be selected and
used according to specific placement requirements. It should be
noted that different nozzles are suitable for electronic components
of different sizes and shapes. Choosing the appropriate nozzle type
is very important for the efficiency and quality of placement work.
Nozzle material:
| Tungsten steel nozzle | Tungsten steel nozzle is strong and durable, but it is easy to turn
white. If it turns white, use an oil-based pen to paint it, and you
can continue to use it. |
| Ceramic nozzles | Ceramic nozzles never turn white, but are brittle and easy to
break. Careful use can avoid or reduce breakage. |
| Diamond steel nozzle | It is strong, easy to use, and will never turn white, but it is
very expensive and not cost-effective. |
| Glue nozzle | When the surface of the material is uneven or the material is
sticky, it is suitable to use the glue nozzle. However, the life of
the glue nozzle is not long. It is recommended to buy more glue
nozzles for spare when ordering the glue nozzle. When the nozzle is
worn, you can just replace it with the rubber nozzle yourself |
JUKI Nozzle Series:
JUKI HA006340000 CIRCUIT PROTECTOR JM20
JUKI EZA2040081A TOOL ASSY_PLANE CONFIRM
JUKI 40107219 CAL-BLOCK CABLE ASM
JUKI EZ471025701 SPRING COMPRESSION
JUKI WWW.FUJINTAI.COM
JUKI E6133706000 ADAPTER PLATE FTF
JUKI 40183464 COVER_FUR_PRINT_FIG
JUKI EZ768342104 BOLT HEXAGON SOCKET 4X12
JUKI HW001010020 TWIST PAIR WIRE AWG18
JUKI E9421729HA0 AWC MOTOR PULSE CABLE ASM
JUKI E6158715000 INSIDE BLOCK(10CC)
JUKI 40002286 MINI PAT R RLY CABLE ASM KE2070,2080
JUKI EZ202411501 BAR LATCH JOINT
JUKI EZ268118801 BEARING (MR106ZZ1 MC2EP5*)
JUKI ZFS30605087 POWER SUPPLY CABLE ISM
JUKI 40170851 CPU BOARD JM20
All item of nozzle for FUJI Pick and Place Machine
We sell SMT Nozzles of all brand ,such as YAMAHA, Panasonic,
FUJI,JUKI,SAMSUNG ,etc.
