    Smallbatch/Multiple Offline Selective Integrated Selective Wave Soldering For THT Line

    Ask Lasest Price
    Brand Name : HSTECH
    Model Number : SW-320YT
    Certification : CE,ISO
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 30000PCS
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    Smallbatch/Multiple Offline Selective Integrated Selective Wave Soldering For THT Line

    Smallbatch/Multiple Offline Selective Integrated Selective Wave Soldering For THT Line
    Product Introduction

    Advanced solution for DIP soldering challenges in small-batch and multiple-variety production environments.

    • Enables flexible production of multiple varieties and small batches
    • Quick setup for soldering without fixtures required
    • Extremely low equipment purchase cost
    • Minimal usage and maintenance costs (savings on tin slag, flux, electricity, and consumables)
    • 100% tin penetration rate with over 98% soldering yield
    • Compact footprint with extremely low covering area
    Working Principle

    In offline selective soldering mode, the soldering nozzle remains fixed while the PCB board moves along X, Y, and Z axes according to programmed settings to achieve precise soldering of PCB solder joints.

    Selective wave soldering working diagram Selective soldering system overview
    Precision Spraying System
    Selective spraying mechanism Atomization effect under strong light

    High-precision 0.5mm fluid spray nozzle using "Lumina" imported from Japan in original packaging.

    PCB Preheating Systems
    Top Side Preheating (Optional)
    PCB top preheating system

    Utilizes 1KW infrared heating tubes to preheat PCB board top before soldering. Meets high temperature requirements for special components, reduces thermal shock, activates flux activity, improves component pin tin penetration, and enhances soldering quality.

    Bottom Side Preheating
    PCB bottom preheating system Bottom preheating mechanism

    Employs fast infrared heat conduction to preheat PCB board before soldering and maintains heating during the process. Features synchronized "preheating + soldering" design principle that improves soldering efficiency, increases tin penetration rate, reduces thermal shock for heat-sensitive components, and ensures high cleanliness of PCB after soldering.

    Machine Features & Construction
    Machine overview Centralized wiring system

    Centralized wiring design for easy maintenance. Features Taiwan PMI screws and tracks.

    Quick detachable tin furnace

    Quick detachable tin furnace design for convenient maintenance.

    Independent liquid and gas components

    Liquid and gas components are independent of the electrical box, ensuring safety and reliability.

    Customer Applications

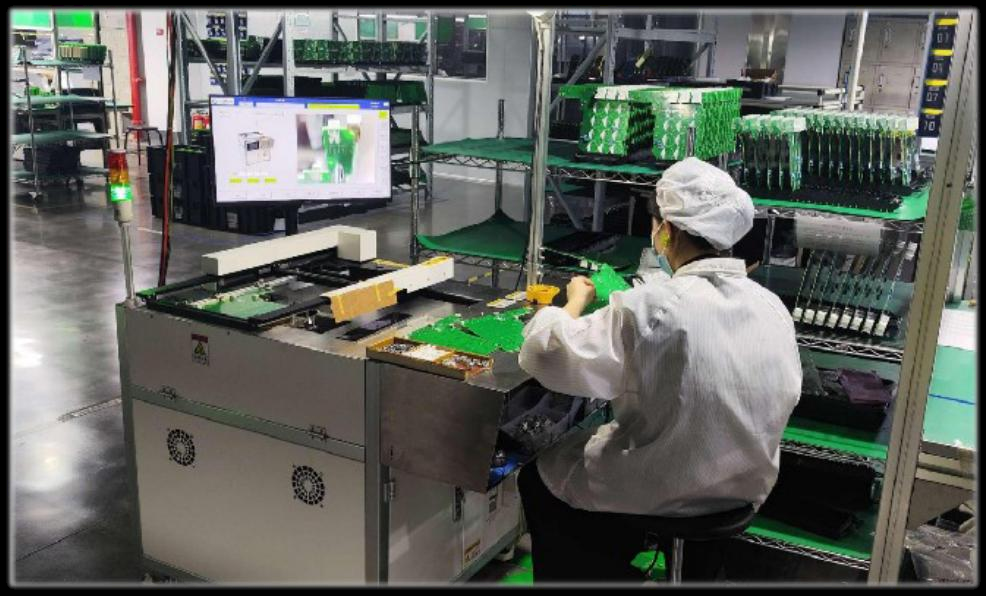

    Customer application example 1 Customer application example 2 Customer application example 3 Customer application example 4
