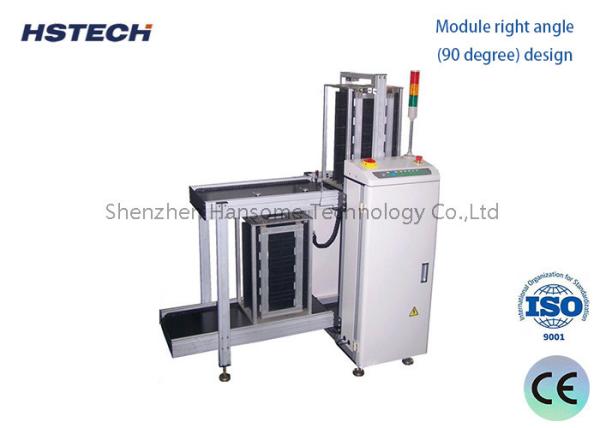

True Color Touch Screen Control PCB Loader PCB Handling Equipment With Tower Light Display

This machine is used for the start of SMT production line, by pusing the pcbs out of the magazine to the conveyor of downstream machine.

Definition and function:
PCB loader is a special equipment for automatic loading of PCB (printed circuit board).
The main function is to automatically take materials from the raw material rack and accurately load them into the production line or subsequent process equipment.

Working principle:
PCB loader is usually composed of rack, vacuum suction cup, XY servo platform and other components.
The suction cup absorbs the PCB board through vacuum negative pressure, and the platform accurately controls the movement trajectory to take the PCB board from the rack to the specified position.
The whole process is automatically completed by the control system to achieve fast and efficient PCB loading operation.

Main features:
High degree of automation: fully automatic PCB picking and placing without manual operation.
High loading accuracy: repeatable positioning accuracy within ±0.05mm.
Strong adaptability: the suction cup position can be automatically adjusted according to different sizes of PCB.
High efficiency: the average loading efficiency of a single machine can reach 300-500 pieces/hour.
Save labor costs: greatly reduce the labor intensity of manual loading.

Application scenarios:
PCB manufacturing: automatically load bare boards to SMT patch equipment, wave soldering machines, etc.
Electronic assembly: load assembled PCB boards to test equipment, packaging equipment, etc.
Repair and repair: quickly and accurately load the repaired PCB boards to the repair equipment.

Specification

Features

1, True color touch screen control

2, Mitsubishi PLC

3, Magazine capacity: top 1, bottom 1, or customized

4, Selective pitch: 10mm,20mm,30mm,40mm

5, PCB transport direction: L - R, or R - L,optional

6, Manual/Automatic run mode selection

7, Front rail fixed or rear rail fixed,optional

8, Standard height for SMT application(920±20mm)

9, Tower light display

10, SMEMA signal
